GeoTIFF Unpacked: The Essential Data Format for Geospatial Insights

GeoTIFF Unpacked: The Essential Data Format for Geospatial Insights

In the realm of geospatial data, where precision and efficiency drive meaningful insights, the GeoTIFF format has established itself as a cornerstone. From satellite imagery to topographical maps, this format bridges the gap between raw data and actionable information, offering a structure that is both flexible and robust.

What is GeoTIFF?

GeoTIFF is a geospatial data format that combines the power of raster imagery with the precision of geographic metadata. Essentially, it is an extension of the TIFF (Tagged Image File Format) standard, enriched with georeferencing information that allows images to be accurately aligned with real-world locations. Whether you are working with satellite data, elevation models, or land cover maps, GeoTIFF provides the spatial context needed for analysis and decision-making.

By embedding georeferencing information directly into the file, GeoTIFF eliminates the need for separate metadata files. This self-contained nature makes it a preferred choice for geospatial professionals who rely on accuracy and portability in their workflows.

Origin of GeoTIFF

The origins of GeoTIFF trace back to the early 1990s when geospatial professionals sought a standardized way to embed geographic metadata directly into raster image files. The goal was to enhance the usability of TIFF (Tagged Image File Format), which was already a popular format for storing raster images, by adding georeferencing capabilities. This innovation allowed raster data to include essential spatial information, such as coordinate systems and projections, without requiring external metadata files.

The development of GeoTIFF was driven by the growing need for interoperability in geographic information systems (GIS) and remote sensing applications. Over time, the format gained widespread adoption due to its simplicity, efficiency, and ability to integrate seamlessly with existing geospatial workflows. Recognizing its importance, the Open Geospatial Consortium (OGC) formally adopted GeoTIFF as an international standard. This OGC standardization ensures that GeoTIFF remains a reliable and universally accepted format for encoding and sharing geospatial raster data across diverse industries and applications.

You can find the GeoTIFF standard here: https://docs.ogc.org/is/19-008r4/19-008r4.html

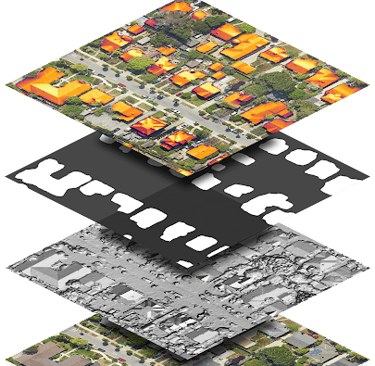

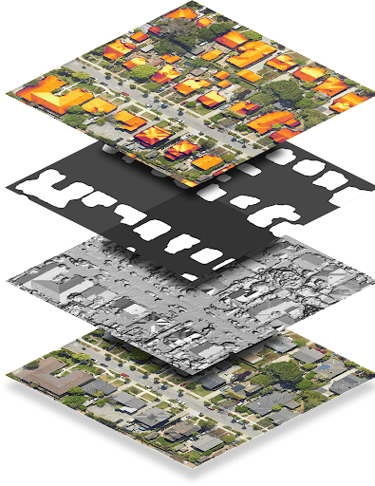

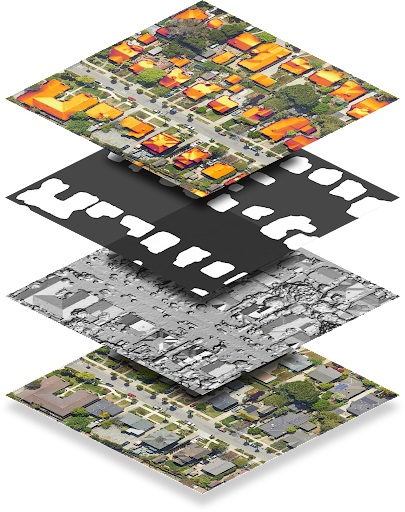

Layers of GeoTIFF

GeoTIFF files often contain multiple layers of geospatial data, each serving a distinct purpose in analysis and visualization. Each layer provides a specific dataset, such as height above sea level or solar exposure levels, which, when combined, create a comprehensive geospatial dataset. These layers allow users to perform multi-faceted analyses, such as calculating solar panel efficiency based on roof angles and sunlight exposure, or assessing terrain suitability for various applications. The flexibility of GeoTIFF to store multiple layers makes it a versatile choice for complex geospatial projects that demand a holistic view of overlapping datasets.

The possible layers in a GeoTIFF file depend on the specific application and the type of data being stored. Here is a comprehensive list of commonly used layers in GeoTIFF files across various domains:

General GeoTIFF Layers

1. Elevation/Height (DEM): Digital Elevation Models that represent the terrain's height above sea level.

2. Slope: Indicates the steepness of the terrain, useful for environmental and construction projects.

3. Aspect: The compass direction a slope faces, essential for solar and hydrological studies.

4. Land Use/Land Cover (LULC): Classification of land types (e.g., forests, urban, water bodies).

5. Coordinate Reference System (CRS): Metadata layer specifying the spatial reference or projection used.

Remote Sensing and Environmental Layers

1. Vegetation Index (NDVI/EVI): Indicators of vegetation health derived from multispectral imagery.

2. Temperature: Ground surface temperature, often used in climate studies.

3. Soil Moisture: Represents soil water content, critical for agriculture and hydrology.

4. Radiance/Reflectance: Raw or corrected reflectance data from satellites.

5. Chlorophyll Concentration: Used for monitoring water quality and ocean productivity.

Hydrological and Geological Layers

1. Watershed Boundaries: Indicates drainage basins and flow accumulation areas.

2. Flood Risk Zones: Identifies areas prone to flooding based on elevation and historical data.

3. Geology: Layers representing rock types and geological features.

4. Aquifer Locations: Maps underground water reservoirs.

Urban Planning and Infrastructure Layers

1. Building Footprints: Represents individual building outlines.

2. Transportation Networks: Includes roads, railways, and pathways.

3. Zoning Information: Land-use restrictions and property classifications.

4. Population Density: Estimates of people per unit area.

Meteorological Layers

1. Precipitation: Rainfall data, often averaged over a specific period.

2. Wind Speed and Direction: Data useful for renewable energy projects like wind farms.

3. Solar Irradiance: Maps potential solar energy received by the surface.

4. Specialized Layers for Solar Mapping (Example from Google Solar GeoTIFF)

5. Solar Potential (WH/m²): Annual solar energy potential.

6. Roof Segment ID: Identifiers for distinct roof sections.

7. Pitch (Degrees): Slope of the roof.

8. Aspect (Degrees): Roof orientation.

9. Usable Roof Area (m²): Calculates installable area for solar panels.

Other Advanced Layers

1. Bathymetry: Underwater terrain elevation for marine studies.

2. Seismic Activity: Identifies earthquake-prone areas.

3. Rasterized Climate Models: Includes temperature, humidity, and precipitation trends.

4. Crop Health: Multispectral data to monitor agricultural productivity.

5. Air Quality Metrics: Spatial distribution of pollutants like NO2 or PM2.5.

Layers for Machine Learning Applications

1. Feature Maps: Derived attributes like texture, edge detection, etc., for AI applications.

2. Probability Maps: Shows likelihood of a classification (e.g., forest vs. non-forest).

3. Change Detection: Highlights areas where significant changes have occurred over time.

Metadata Layers

1. Time Stamps: Temporal information for time-series data.

2. Source/Provenance Information: Details about the origin and processing of the dataset.

These layers highlight the versatility of GeoTIFF as a format, accommodating diverse data types and applications in geospatial sciences, urban planning, environmental studies, and beyond.

The Core Strengths of GeoTIFF

One of the most compelling aspects of GeoTIFF is its ability to integrate seamlessly into diverse applications. It supports a wide range of coordinate systems, projections, and resolutions, making it versatile enough for tasks ranging from global-scale environmental monitoring to detailed urban planning projects.

Another strength lies in its open standard. The GeoTIFF format is freely available and widely supported, ensuring compatibility across numerous GIS (Geographic Information System) tools and platforms. This accessibility has made it a go-to format for both academic researchers and industry professionals who need reliable data exchange and processing.

The format's ability to store multilayered data is equally significant. For example, a single GeoTIFF file might include multiple spectral bands from satellite imagery, allowing users to analyze vegetation health, water bodies, and urban areas within a unified dataset. This capability reduces the complexity of managing separate files for different data layers.

GeoTIFF in Action

Imagine a city planner analyzing flood risk in a coastal region. Using GeoTIFF files, they can layer elevation data, historical flood extents, and current land use to visualize areas at greatest risk. The georeferencing embedded in GeoTIFF ensures that all these layers align perfectly, enabling precise assessments and actionable plans.

Similarly, in agriculture, GeoTIFF is invaluable for monitoring crop health. Multispectral imagery stored in GeoTIFF files helps identify stressed areas in a field, guiding targeted interventions like irrigation or fertilization. By reducing waste and optimizing resources, this approach contributes to more sustainable farming practices.

In environmental conservation, GeoTIFF facilitates large-scale habitat mapping. Researchers can analyze satellite data to track deforestation, monitor wildlife corridors, or assess the impact of climate change. The spatial accuracy provided by GeoTIFF ensures that these insights are reliable and actionable.

Challenges and Considerations

While GeoTIFF is a powerful format, it is not without its challenges. Large file sizes can become an issue, especially when dealing with high-resolution imagery or extensive datasets. Efficient storage solutions and compression techniques are often required to manage this.

Additionally, the richness of the format means that it can be complex to work with for beginners. Understanding projections, coordinate systems, and metadata encoding requires a learning curve. However, with the wealth of tools and documentation available, these hurdles are not insurmountable.

Interoperability can also present occasional challenges. While GeoTIFF is widely supported, variations in software implementations may lead to inconsistencies. Ensuring compatibility often involves testing files across multiple platforms and adhering to standardized practices.

The Future of GeoTIFF

As geospatial data continues to grow in importance, GeoTIFF remains at the forefront of innovation. Advances in remote sensing technologies, such as higher-resolution satellites and drone-based imaging, are generating increasingly detailed datasets. GeoTIFF's ability to handle this complexity ensures its relevance in an evolving field.

Emerging technologies like cloud computing and machine learning are also shaping the future of GeoTIFF. Cloud-based platforms are making it easier to store, process, and share large GeoTIFF files, while machine learning algorithms are leveraging the format's rich data to extract insights at unprecedented scales.

Final Thoughts

GeoTIFF stands as a testament to the power of simplicity combined with sophistication. By embedding geospatial metadata into a universally recognized image format, it bridges the technical demands of geospatial analysis with the practical needs of its users. Whether you are mapping urban growth, studying environmental changes, or planning infrastructure, GeoTIFF provides the foundation for accurate and meaningful insights.

Its role in the geospatial industry is not just as a tool but as a critical enabler of informed decision-making, where every pixel carries a story waiting to be uncovered.

Image Courtesy: Google (https://developers.google.com/maps/documentation/solar/geotiff)
