An Introduction to gRPC for Modern Applications

An Introduction to gRPC for Modern Applications

In the ever-evolving world of application development, efficient communication between services is paramount. As applications grow in complexity and scale, the need for a robust framework to handle communication becomes more pressing. gRPC, an open-source framework developed by Google, has emerged as a powerful tool for enabling fast and reliable communication between distributed systems.

What is gRPC?

gRPC, short for Google Remote Procedure Call, is a high-performance communication framework that uses HTTP/2 for transport, Protocol Buffers for serialization, and provides support for multiple programming languages. At its core, gRPC allows applications to interact seamlessly, regardless of the platform or language they are built on. Unlike traditional REST APIs, which rely on text-based JSON, gRPC employs a binary serialization format through Protocol Buffers, resulting in significantly faster data transmission and reduced payload sizes.

This framework is particularly well-suited for microservices architectures, where multiple services need to exchange data quickly and efficiently. By enabling bi-directional streaming and multiplexing over HTTP/2, gRPC ensures that services can maintain high levels of performance even under heavy loads.

Key Features of gRPC

One of the standout features of gRPC is its reliance on HTTP/2, which introduces several advancements over the older HTTP/1.1 protocol. With multiplexed connections, multiple requests and responses can be sent simultaneously over a single connection, reducing latency and improving overall throughput. This makes gRPC a natural choice for real-time applications where performance is critical.

Another defining characteristic of gRPC is its use of Protocol Buffers, a language-neutral and platform-independent serialization format. Protocol Buffers, often referred to as protobuf, allow developers to define the structure of their data in a concise and efficient manner. The generated code ensures that data serialization and deserialization are both fast and reliable, providing significant advantages over text-based formats like JSON or XML.

Additionally, gRPC supports a wide range of communication patterns, including unary (single request and response), client-streaming, server-streaming, and bidirectional streaming. This flexibility enables developers to design communication protocols tailored to the specific needs of their applications.

How does gRPC work?

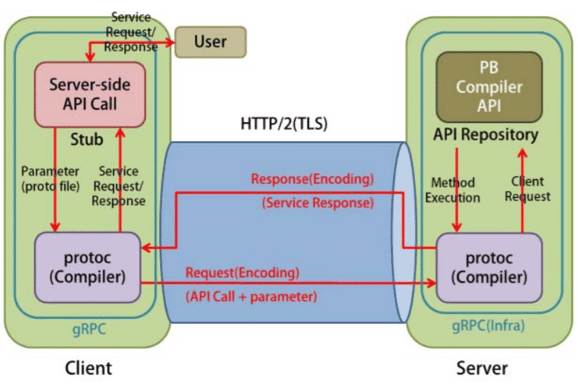

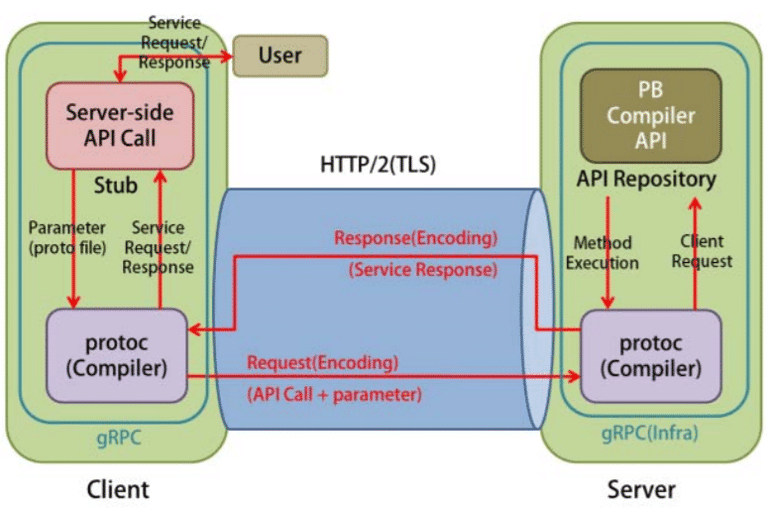

The diagram illustrates the working of gRPC (gRPC Remote Procedure Call), a high-performance, open-source framework that allows communication between client and server applications over HTTP/2 using Protocol Buffers (protobufs) for serialization. Here’s how gRPC works step by step:

Client-Side Workflow:

1. User Interaction: The process begins when the user interacts with the client application and triggers a service request.

2. Server-Side API Call: The client application generates the required API call and forwards it to the Stub. The stub is an automatically generated interface that provides the client with the methods corresponding to the service defined in the protobuf file.

3. Stub and Protocol Buffers (protoc): The stub uses the protoc compiler (Protocol Buffers Compiler) to serialize the request data (API call + parameters) into a compact binary format. The serialized data is sent over HTTP/2 using gRPC’s infrastructure.

Server-Side Workflow:

1. Receiving the Request: On the server side, the serialized request is received and decoded by the gRPC framework. The protoc compiler decodes the binary data into a structured format as per the protobuf schema.

2. API Repository and Method Execution: The decoded request is sent to the API Repository, which contains the service implementation methods. The server processes the client request by executing the corresponding method.

3. Response Generation: After processing the request, the server generates a response, which is then encoded back into the protobuf binary format by the protoc compiler.

4. Sending the Response: The encoded response is transmitted back to the client over HTTP/2 using the gRPC framework.

Client Receives the Response:

1. Response Decoding: On the client side, the response is received and decoded by the protoc compiler. The stub converts the decoded data into a structured response format.

2. Response Handling: The structured response is sent back to the client-side API call, which then displays the results to the user.

Key Components Highlighted in the diagram:

• Stub: Acts as a client-side interface for making API calls.

• protoc Compiler: Handles serialization and deserialization of data using protobufs.

• HTTP/2 (TLS): Ensures secure and efficient communication between client and server.

• API Repository: Contains the server-side implementation of methods defined in the protobuf file.

The use of Protocol Buffers ensures that data is compact and efficient, and HTTP/2 enables fast, bi-directional streaming, making gRPC an excellent choice for building scalable, high-performance applications.

Use Cases for gRPC

gRPC has gained widespread adoption across industries due to its versatility and efficiency. In the realm of microservices, gRPC excels at enabling communication between different services. Whether it is a user authentication service interacting with a database layer or a payment processing system integrating with external APIs, gRPC ensures seamless and low-latency communication.

Real-time applications, such as chat systems, online gaming platforms, and live collaboration tools, also benefit from gRPC’s ability to handle bi-directional streaming. For instance, a multiplayer game might use gRPC to synchronize game state between players in real time, ensuring a smooth and immersive experience.

Moreover, gRPC is increasingly being used in Internet of Things (IoT) applications, where devices need to send and receive data with minimal overhead. Its lightweight nature and efficient serialization make it an ideal choice for bandwidth-constrained environments.

Challenges and Considerations

While gRPC offers numerous benefits, it is not without its challenges. One of the primary considerations is the learning curve associated with Protocol Buffers. Developers familiar with JSON or XML may find the protobuf schema definition language unfamiliar initially. However, with practice and proper tooling, this becomes a minor hurdle.

Another aspect to consider is compatibility. While gRPC supports multiple programming languages, ensuring compatibility across various versions and platforms can sometimes require additional effort. It is essential to maintain clear documentation and follow best practices when designing gRPC-based systems to avoid potential pitfalls.

Lastly, gRPC relies on HTTP/2, which may not be natively supported by older infrastructure. Upgrading servers and load balancers to support HTTP/2 is often necessary but can be time-intensive for organizations with legacy systems.

Why Choose gRPC for Your Next Project?

For developers building modern, distributed systems, gRPC offers a compelling solution for inter-service communication. Its combination of speed, efficiency, and flexibility makes it a strong contender for use in microservices, real-time applications, and IoT environments. By leveraging advanced features like HTTP/2 transport and Protocol Buffers serialization, gRPC provides the tools needed to build scalable and high-performance systems.

While there are challenges to adopting gRPC, the benefits often outweigh the initial effort required. With a vibrant open-source community and widespread industry support, gRPC is well-positioned to remain a key player in the landscape of modern application development.

Image Courtesy: ResearchGate (https://www.researchgate.net/figure/gRPC-architecture-21_fig1_346943854)

Feature Image Courtesy: LinkedIn (https://www.linkedin.com/pulse/why-grpc-future-software-architecture-mohit-malhotra/)
